Producer Gas: Composition, Energy and Cleaning
Producer gas is the fuel that biomass gasification actually delivers. Also known as wood gas, it is a low-to-medium calorific-value gas whose combustible components can drive engines and burners in place of fossil fuels. Understanding what is in it — and what has to be removed — is central to using it well.
What is in producer gas
The gas produced by air-blown biomass gasification is a mixture of several components. A representative composition by volume is:
- Carbon monoxide (CO): about 18–20% — combustible
- Hydrogen (H2): about 18–20% — combustible
- Methane (CH4): about 3–4% — combustible
- Carbon dioxide (CO2): about 9–12% — inert
- Nitrogen: the balance — inert, carried in with the combustion air
The flammable and useful components are CO, H2 and CH4. The large share of inert nitrogen is why air-blown producer gas has a lower energy density than natural gas — a fundamental point when sizing engines and burners.
Energy content
A typical calorific value for clean producer gas is around 1,100–1,200 kilocalories per normal cubic metre (roughly 4.5–5 MJ/Nm3). That is only about a tenth of the volumetric energy of natural gas, but it is entirely adequate for the applications gasification targets: because the gas is made on site from cheap or free residues, its lower density is an engineering consideration rather than an economic obstacle.
The problem of tar and dust
Raw, hot producer gas leaving the reactor is not yet fit for an engine. It carries two troublesome contaminants: fine particulate dust and condensable organic compounds collectively called tar. For reliable engine operation both must typically be reduced to very low levels — on the order of less than 15 ppm each. Tar that condenses in cool pipework and valves is the classic cause of gasifier-engine unreliability, so tar management defines much of the practical engineering.
Cleaning the gas

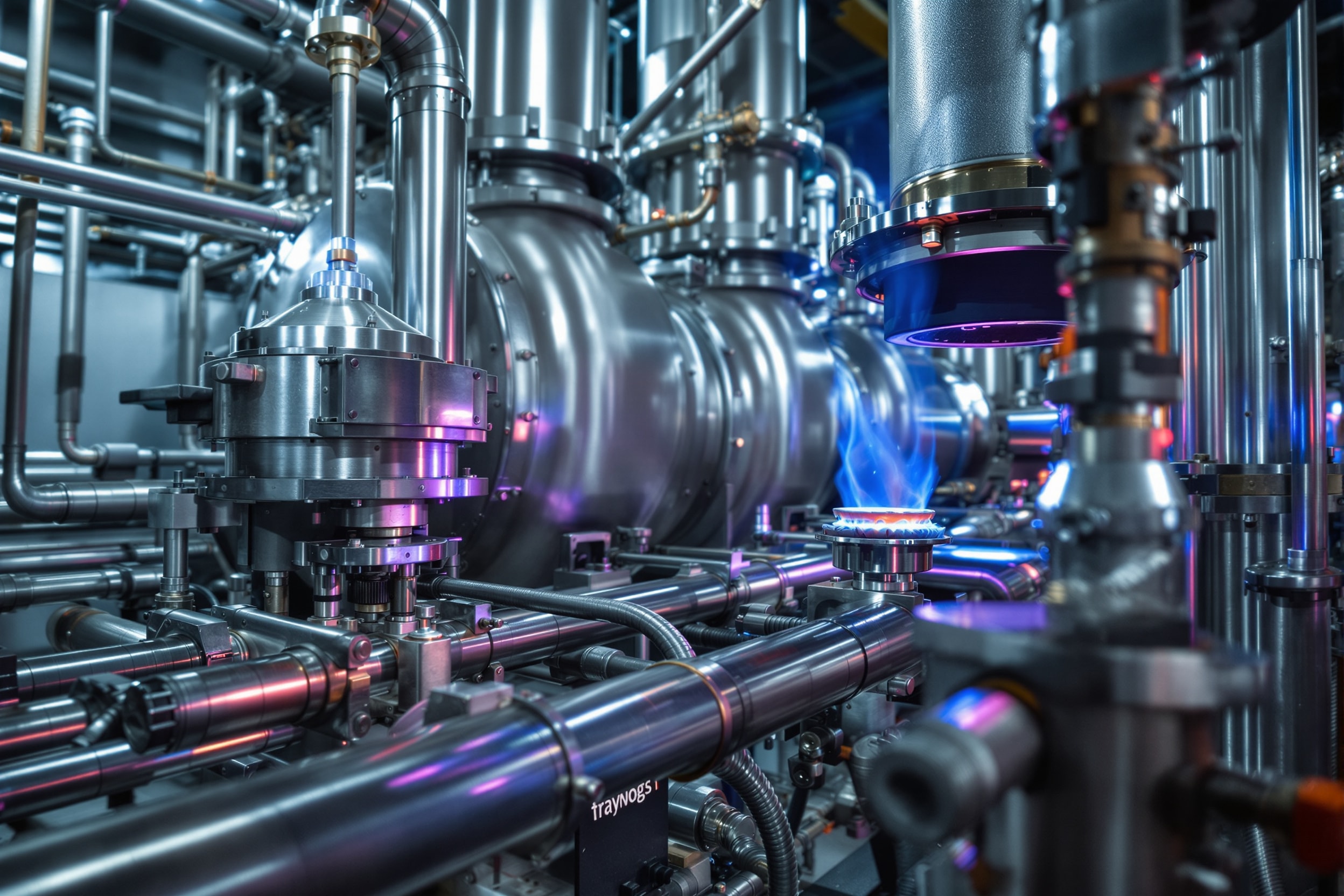

A gas-cleaning train conditions the raw gas before use. Typical stages include:
- Cyclone separators to spin out coarse particulates
- Coolers to drop the gas temperature and condense heavy tars
- Wet or dry scrubbers to remove finer tar and dust
- Fabric or fine filters as a final polishing stage
Good reactor design reduces the cleaning burden at source: downdraft gasifiers, for example, crack much of the tar inside the reactor and so deliver a cleaner gas than updraft designs.
Handling it safely
Producer gas contains a high proportion of carbon monoxide, which is toxic and odourless, so gasifier installations demand proper ventilation, leak control and monitoring. These are well-established industrial safety practices; reference agencies such as the U.S. Energy Information Administration and national energy bodies publish guidance on biomass energy systems.
How producer gas compares with other fuels
It helps to place producer gas alongside the gaseous fuels it competes with. Natural gas, which is mostly methane, carries roughly ten times the energy per cubic metre; biogas from anaerobic digestion, at 50–70% methane, sits in between; bottled LPG is denser still. Producer gas is the lean member of the family, diluted by the nitrogen drawn in with combustion air. That does not make it inferior for its purpose — it simply means burners and engines must be sized for a larger gas volume and a lower flame speed. Because the gas is generated on demand from local residue rather than delivered by pipeline or cylinder, its low energy density is an engineering parameter, not a cost. In practice, consistent quality — stable composition, low tar and low moisture — matters far more to the end-use equipment than raw calorific value.
Putting the gas to work
Once cleaned, the same gas serves two families of application: power generation in spark-ignited or dual-fuel engines, and thermal heat in furnaces, kilns and dryers. Its composition and modest energy density shape how each is engineered.
